Products > Kimwood Hog

Kimwood Corporation offers multiple sizes of Hogs for the processing of wood waste. The Kimwood Hog is designed and manufactured to process difficult materials into usable wood waste with less power and lower maintenance than typical hammerhogs. Built to typical Kimwood standards, the Kimwood Hog continues Kimwood's tradition of heavy-duty construction, lower maintenance and proven ability to "stay on line". Click the following link to check for "New or Reconditioned Equipment" currently in stock.

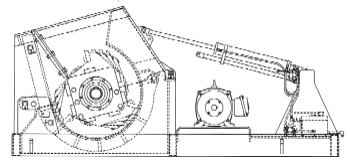

Kimwood Hog
Click picture to see more photos

The patented Kimwood Hog is designed and built to process difficult materials with less power and lower maintenance than typical hammerhogs. This is accomplished by having only one moving part instead of many small moving parts that wear against each other and the materials being processed. The Kimwood Hog is known for its very heavy duty construction and ability to stay on-line.


The solid rotor assembly builds and maintains high kinetic energy that easily processes material surges, solid chunks and stringy barks. The offset cutter bars reduce power consumption and attack materials across the full width of the machine. The 180 grate (screen) design has proven to process material surges and high volumes to more consistently sized final products. The case is manufactured heavier at all stress points and the wear areas are covered with wear plates that are made of (400-500 Brinell) alloy plate.

The shaft and bearings are oversized to withstand the abuse that hogs are subjected to. Specifically designed shear pins keep damage to a minimum when an "uncrushable" object gets into the hog. Their controlled break allows fast pin replacement and minimizes downtime.


A unitized substructure frame with an adjustable motor base, drive guard, hydraulic opener and pre-wired electrical safety switches are all included in the standard unit. For new installations or old hog replacement, the complete package approach makes for a faster, safer and more economical installation. these features also allow maintenance personnel fast, easy and safety access to perform necessary maintenance, further reducing overall costs.

Kimwood Hog

Various sizes of Kimwood Hogs that are available.

Rotor Diameter
Rotor Length
Rotor Weight
Machine Weight*
TPH
**
HP
***
RPM
Shaft
Bearing Diameter
36"
24"
4,140
15,300
15
150-200
900
6"
5 15/16"
36"
36"
6,040
18,700
30
200-250
900
6"
5 15/16"
36"
48"
7,940
22,000
40
250-300
900
6"
5 15/16"
36"
60"
9,840
25,400
50
300-400
900
6"
5 15/16"
36"
72"
11,740
28,700
60
300-400
900
6"
5 15/16"
48"
36"
10,880
26,900
50
300-400
600-700
6"
5 15/16"
48"
48"
14,760
32,800
80
350-450
600-700
6"
5 15/16"
48"
60"
18,450
38,500
100
400-500
600-700
6"
5 15/16"
48"
72"
21,140
43,100
120
400-600
600-700
6"
5 15/16"
* Weights are approximate and motor(s) weight is not included.
** TPH is based on 23 Lbs/ft3 material processed to 4" minus.
*** HP is a reference only. (Consult Kimwood for Individual Applications)

Retrofits:

Kimwood has been involved in the manufacture of equipment for the wood products industry for 60+ years. Kimwood started manufacturing the Kimwood Hog in 1992. Kimwood is always looking at ways to improve the best rotary hog in the market place and has developed a couple retro-fits to decrease downtime and maintanence costs, thus increasing the machines production. Click "Kimwood Hog Retrofits" for available rotary hog upgrades.

Parts, Manuals, & Assembly Drawings:

Kimwood maintains historical files for all of it products lines. As a result of this, almost all of the equipment originally supplied can be manufactured from historical files. Kimwood also can reproduce most machine assembly drawings and original manuals for those pieces of equipment. Click "Parts, Manuals, & Assembly Drawings" for more information.

Hog Trade-in / Reconditioning Program:

The Kimwood Hog is a relatively new addition to the industry, hence there is no active rebuild / replacement program in place. Although Kimwood will still entertain a request to rebuild all or a part of a Hog. Let us look over your present Kimwood Hog and provide a trade-in allowance against the purchase of a new Kimwood Hog; or as an alternative, let us provide a price to recondition your existing Hog. Click "Reconditioning Program" for more information.
